AVANC Blueprints 1:1 Scale Ratio - Digital Download

1:1 scale ratio blueprints of THE AVANC available as a digital download in PDF format.

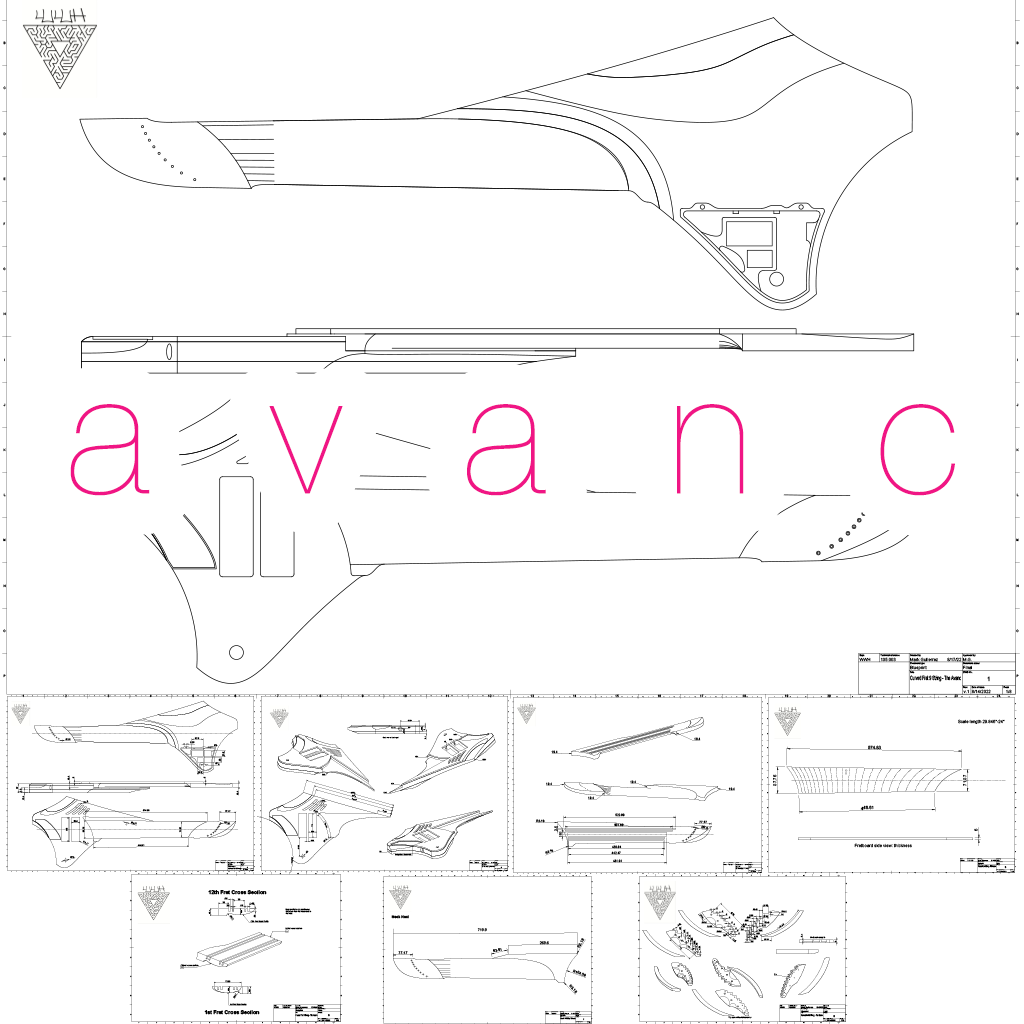

Digital download consists of 8 blueprints, including one top view without dimensions that would make a great 1:1 poster.

Depending on the view, these blueprints are either in A0, A1, or A2 dimensions.

A0: 33.1 × 46.8 inches - Top View body, Top View Neck

A1: 23.4 × 33.1 inches - Fretboard, Body, Back of Neck

A2: 16.5 × 23.4 inches - Cross-Section Neck profiles at 1st and 12th fret, Locking clamp

THE AVANC © 2022 by Mark Gutierrez is licensed under Personal Use.

Under licensing terms, you are allowed to build The AVANC for your own personal use. Re-selling of the blueprints is prohibited. Commercial sale of builds based on the blueprints is prohibited.
